NPS介绍
一款轻量级、高性能、功能强大的内网穿透代理服务器
-
几乎支持所有协议
-
支持内网http代理、内网socks5代理、p2p等
-
简洁但功能强大的WEB管理界面
-
支持服务端、客户端同时控制
-
扩展功能强大
-
全平台兼容，一键注册为服务
服务端安装
下载
docker pull yisier1/nps配置文件nps.conf
appname = nps
#Boot mode(dev|pro)
runmode = dev
#HTTP(S) proxy port, no startup if empty
http_proxy_ip=0.0.0.0
http_proxy_port=80
https_proxy_port=443
https_just_proxy=true
#default https certificate setting
https_default_cert_file=conf/server.pem
https_default_key_file=conf/server.key
##bridge
bridge_type=tcp
bridge_port=8024
#上线端口
bridge_ip=0.0.0.0
# Public password, which clients can use to connect to the server
# After the connection, the server will be able to open relevant ports and parse related domain names according to its own configuration file.
public_vkey=123
#Traffic data persistence interval(minute)
#Ignorance means no persistence
flow_store_interval=1
# log level LevelEmergency->0 LevelAlert->1 LevelCritical->2 LevelError->3 LevelWarning->4 LevelNotice->5 LevelInformational->6 LevelDebug->7
log_level=6
log_path=nps.log
#Whether to restrict IP access, true or false or ignore
#ip_limit=true
#p2p
#p2p_ip=127.0.0.1
#p2p_port=6000
#web
web_host=a.o.com
web_username=admin
#管理用户名
web_password=123
#管理密码
web_port = 8081
#管理端口
web_ip=0.0.0.0
web_base_url=
web_open_ssl=false
web_cert_file=conf/server.pem
web_key_file=conf/server.key
# if web under proxy use sub path. like http://host/nps need this.
#web_base_url=/nps
#Web API unauthenticated IP address(the len of auth_crypt_key must be 16)
#Remove comments if needed
#auth_key=test
auth_crypt_key =1234567812345678
#allow_ports=9001-9009,10001,11000-12000
#Web management multi-user login
allow_user_login=false
allow_user_register=false
allow_user_change_username=false
#extension
#流量限制
allow_flow_limit=true
#带宽限制
allow_rate_limit=true
#客户端最大隧道数限制
allow_tunnel_num_limit=true
allow_local_proxy=false
#客户端最大连接数
allow_connection_num_limit=true
#每个隧道监听不同的服务端端口
allow_multi_ip=true
system_info_display=true
#获取用户真实ip
http_add_origin_header=true
#cache
http_cache=false
http_cache_length=100
#get origin ip
http_add_origin_header=false
#pprof debug options
#pprof_ip=0.0.0.0
#pprof_port=9999
#client disconnect timeout
disconnect_timeout=60
#管理面板开启验证码校验

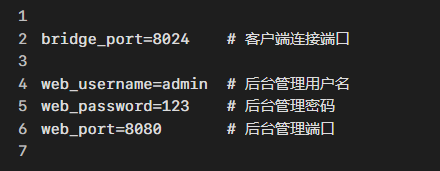

open_captcha=true重点这几项
启动
docker run -d --restart=always --name nps --net=host -v <本机conf目录>:/conf -v /etc/localtime:/etc/localtime:ro yisier1/nps

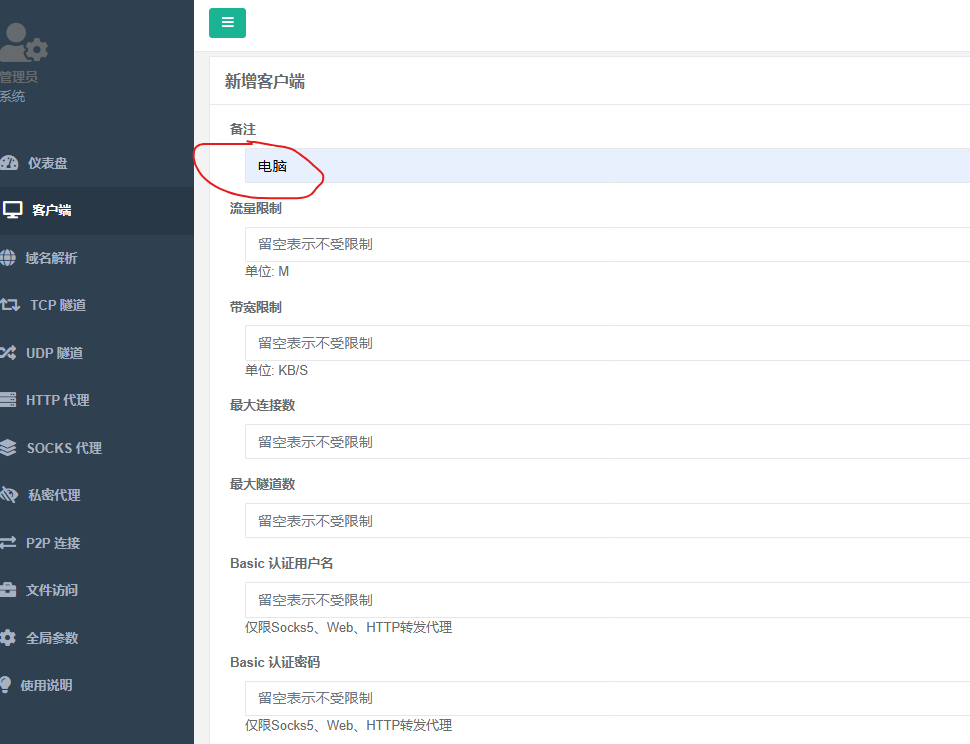

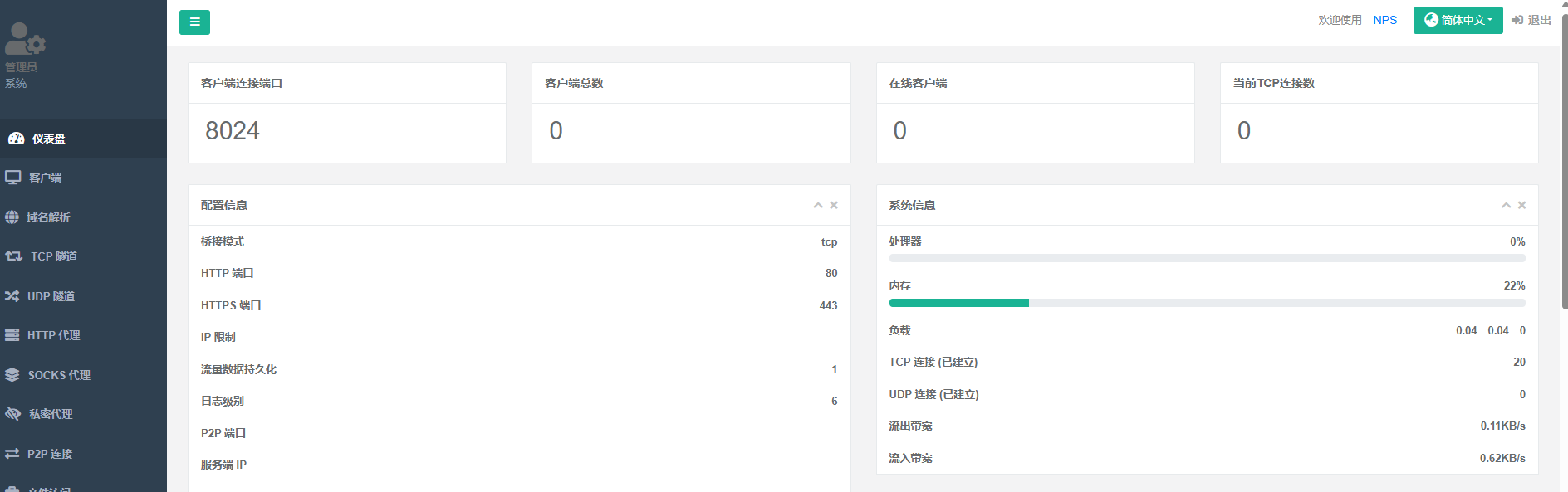

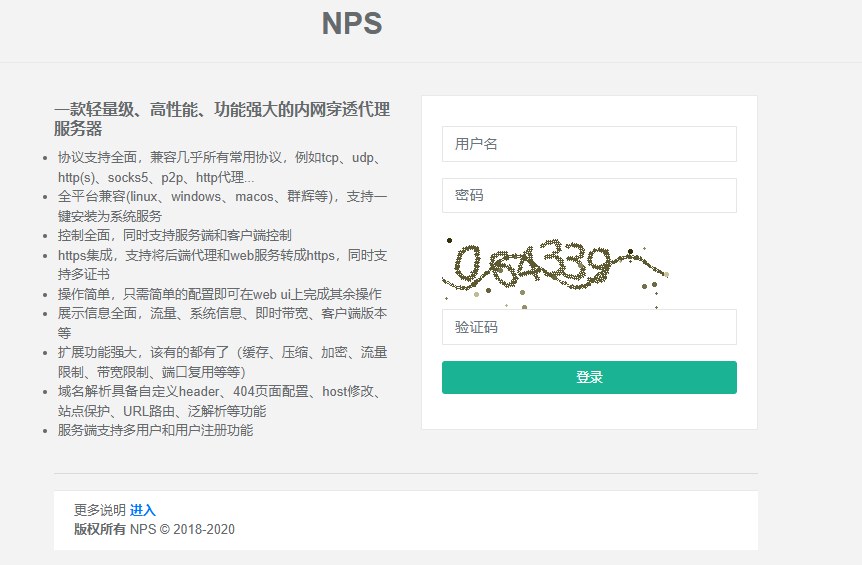

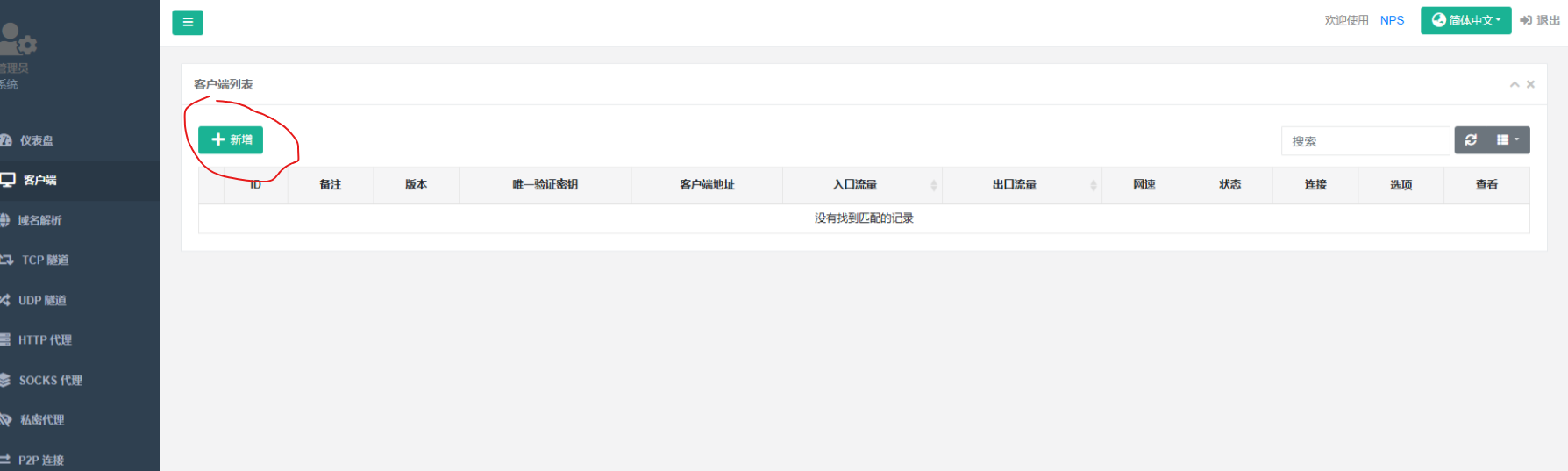

添加客户端配置,进入web管理后台

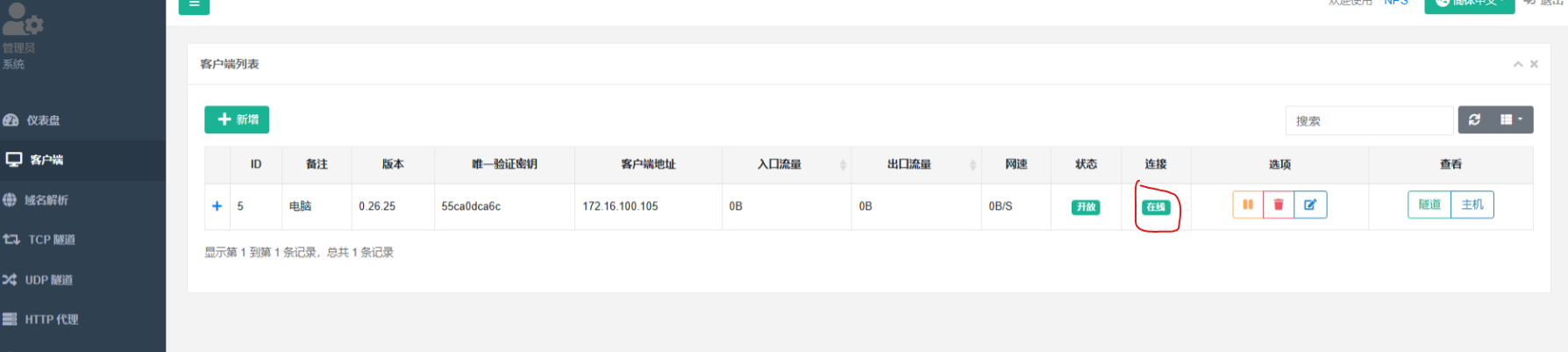

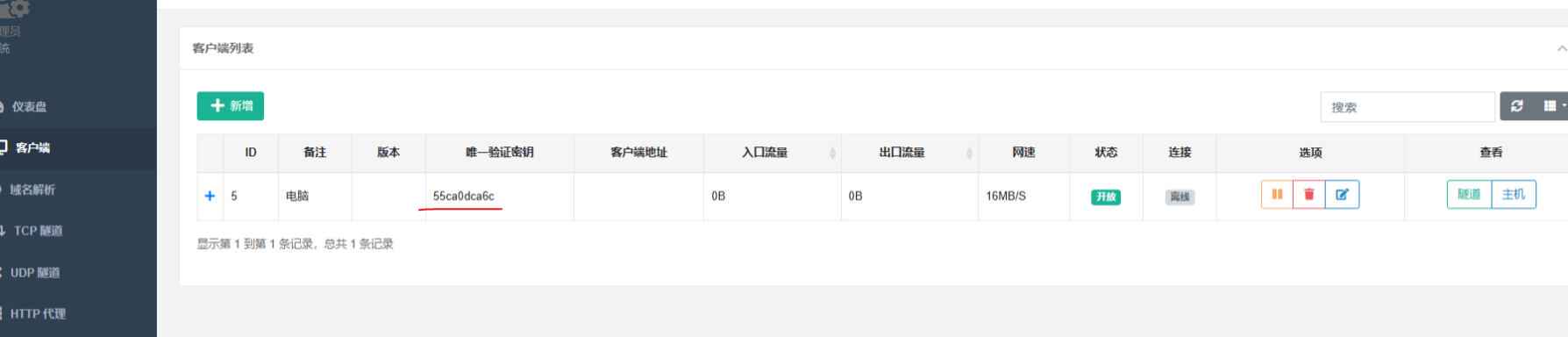

下面有个key就是用客户端上线的
客户端安装
安装
docker pull yisier1/npc配置文件npc.conf
[common]
server_addr=127.0.0.1:8024
#服务地址
conn_type=tcp
vkey=123
#密key
auto_reconnection=true
max_conn=1000
flow_limit=1000
rate_limit=1000
crypt=true
compress=true
disconnect_timeout=60启动
docker run -d --restart=always --name <自定义名称> --net=host -v <本机conf目录>:/conf yisier1/npc
